Vitiny Digital Microscope UM08D-CSZ064 has different and unique Lens design than the other CSZ064 models, not only top view inspection but also side inspection. Its lens structure allows to conveniently switch 2D & 3D 360 degree rotate inspection, moreover keep the same FOV. Such a 2D/3D inspection system is very efficiency for side soldering inspection and parts inside quality check.
Manually operate the angle and position of observative points, that is more intuitive than the electric rotating lens.

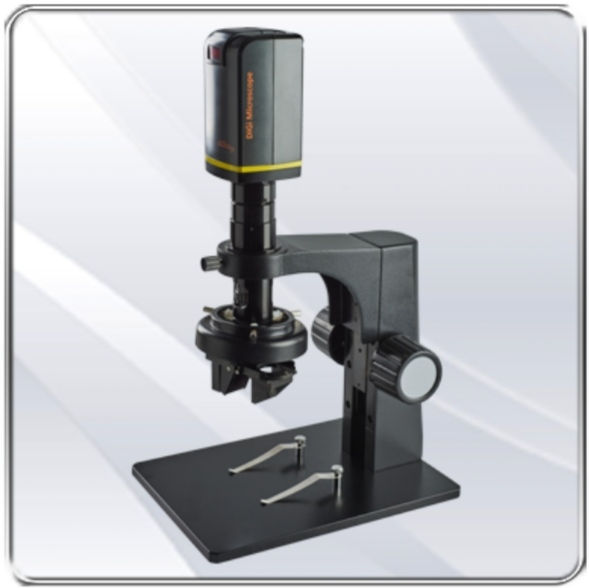

UM08D-CSZ064
Vitiny Digi Microscope
Manufacturer: MicroLinks Technology Corp.
Magnification
22x - 147x on 24” HDMI monitor
Working Distance
117m(2D)/30mm(3D)
Field of View
23.7 – 3.6mm
CMOS Sensor
2M pixels
Dimension
68(L) x 66 (W) x 310(H)mm
Light source
LED ring light
Focus System
-
Lens
C- mount 2D/3D Lens
Signal Output
Full HD 1080p
Response time
60fps
Power Supply
DC 5V/2A
Cable Length
180cm
Interface
HDMI
SD card slot
-
